Background

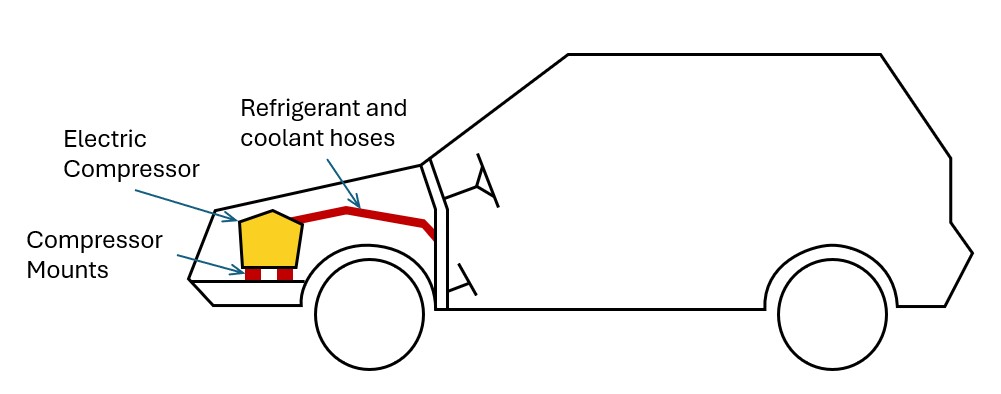

In electric vehicles, the absence of internal combustion engine noise makes previously masked sounds clearly audible. Among these, vibrations from the A/C compressor transmitted through refrigerant hoses and rubber mounts into the cabin are a significant NVH challenge.
To optimize the packaging and design of these interface components (refrigerant hoses, rubber mounts), our vehicle integration strategy relied on predictive FEM simulations. However, these simulations were unreliable because they lacked accurate input data for the frequency-dependent dynamic stiffness of the components across four degrees of freedom: tension/compression, shear, torsion, and bending:
The problem was that no suitable measurement method existed. Standard test machines — designed for stiffer engine mounts — operated at the wrong force amplitudes and frequency ranges for the soft composite hoses in question (PTFE core, elastomer braid, textile sleeve). They also lacked the ability to measure rotational degrees of freedom, capturing only translational stiffness. The team had begun developing a dedicated test bench from scratch, and I joined the project at the prototype stage.
Methodology
The test bench uses an inertial measurement principle. A hose specimen is mounted between two metal parts: an outer active part driven by two electrodynamic shakers, and an inner passive part that floats freely. Accelerometers on both parts capture their motion; double integration of the signals yields displacement, and their difference gives the specimen deformation. Since the passive part is free-floating, the force through the hose is simply its mass multiplied by the measured acceleration — no multi-axis load cells required.
The symmetrical design enables all four loading modes through simple reconfiguration. When both shakers move in phase, the specimen sees pure tension/compression; reversing one shaker's phase produces bending. Rotating the rig 90° and repeating these two configurations yields torsion and shear. Center-of-gravity alignment along the hose axis eliminates cross-coupling, ensuring each mode is excited in isolation.
The Problem

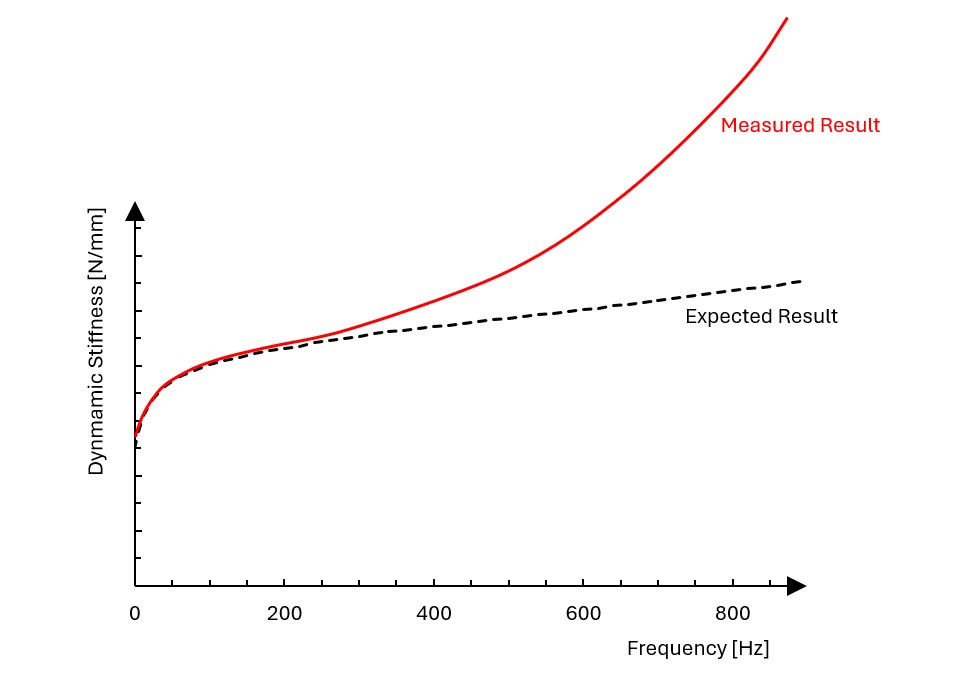

The first-generation test bench worked as a proof of concept, but with a critical limitation. At lower frequencies the measured dynamic stiffness matched theoretical expectations, but beyond roughly 300–400 Hz the values skyrocketed exponentially — behaviour that does not reflect real elastomer physics. Feeding these artificially inflated results into the simulation would mean garbage in, garbage out: over-engineered mounts and hose geometries designed to solve problems that don't actually exist in the vehicle.

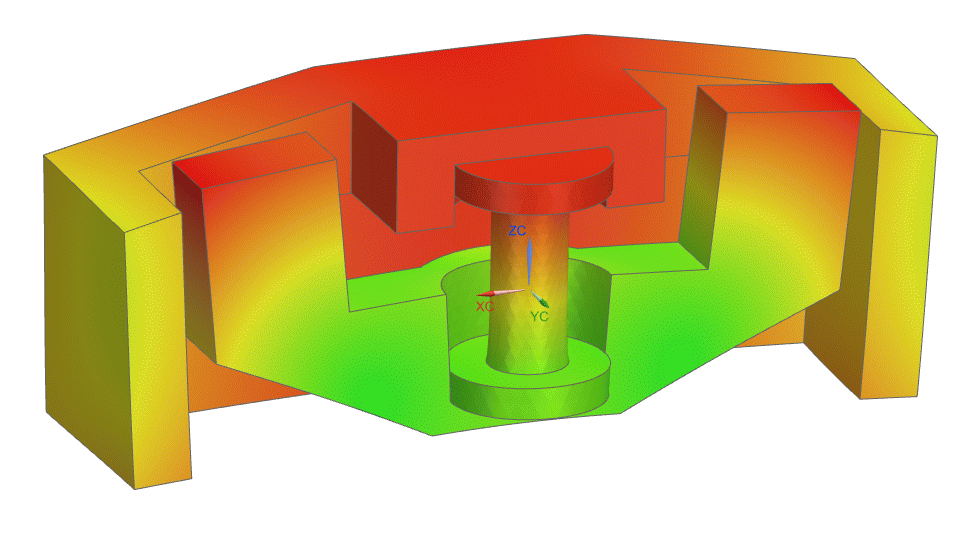

The root cause was structural resonance of the rig itself. The measurement principle assumes both metal parts behave as rigid bodies, and at low frequencies they do. But as the excitation frequency increases, the shakers begin exciting the natural modes of the fixture's structural members, introducing parasitic deformation into the force path and corrupting the stiffness calculation.
Design Objective
Given these findings, the goal for the next-generation test bench was clear: achieve exceptional structural rigidity, pushing the first natural frequency well above the 1,000 Hz operational range to ensure that the rig's own resonances would not interfere with the measurements.
My Contribution
Within the first months I learned the inertial measurement principle, CATIA, and Simcenter LMS Test.Lab — all from brief introductions followed by independent practice.
When my supervisor's Gen-3 design concept reached 3,000–3,300 Hz first resonance (verified in Simcenter 3D / Nastran), he concluded it was near-optimal. I disagreed — and over five personal weekend days developed an independent concept.
My design achieved 7,500 Hz first resonance in simulation — later refined collaboratively to 8,500 Hz. The concept was manufactured and became the production bench.
Scope of Work
- Full CATIA design of 20+ machined parts across multiple test fixtures — from concept to workshop-ready models including tolerances, thread specifications and material selection (aluminium, steel, POM)
- Modal analysis and Direct Frequency Response studies in Simcenter 3D (Nastran solver) for iterative design validation

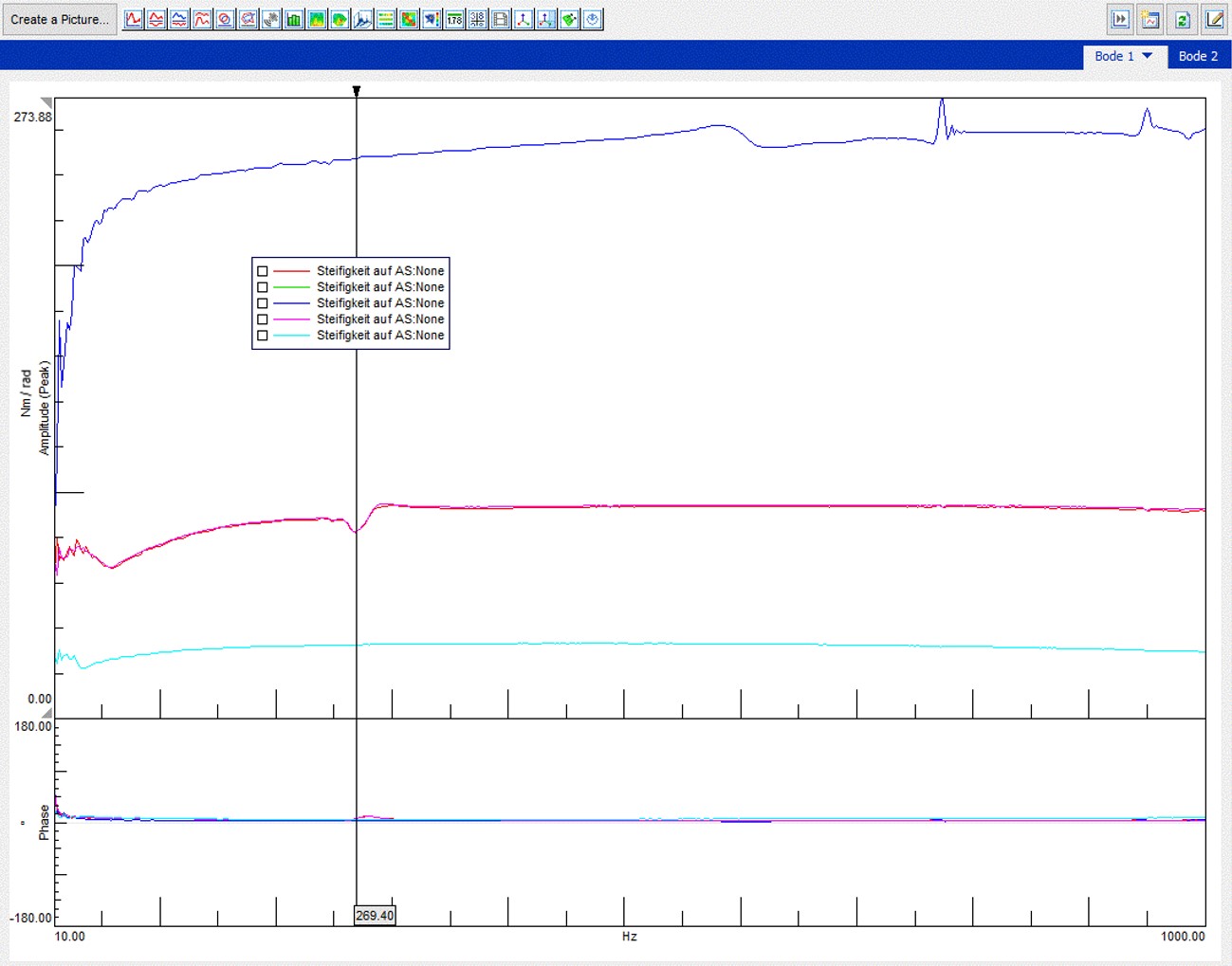

- 500+ laboratory experiments measuring dynamische Steifigkeit of hose specimens using Simcenter LMS Test.Lab and SCADAS hardware
- Data post-processing pipeline: LMS Test.Lab → MATLAB → custom Excel tool (co-developed with supervisor)
- Parallel development of equivalent test bench for compressor rubber mounts (2 DOF: compression and shear)
- Comprehensive methodology documentation enabling team continuity after project handover
Results & Impact
- Test bench with 8,500 Hz first resonance — 3× improvement over previous concept, significantly expanding usable measurement bandwidth
- Complete hose and rubber mount characterisation database delivered — direct input to NVH simulation models
- Methodology and tooling adopted by colleagues after project handover; results feed into BMW Neue Klasse development
- Workshop staff surprised to learn the designs came from a student — "these look like a senior engineer's work"
